3rd Gen Tacoma Transmission Fluid Check: Why Your Factory Fill Might Be Low |
Share
If you drive a 2016–2023 Toyota Tacoma with the 6-speed automatic transmission, there's something Toyota didn't exactly advertise on the window sticker — your transmission might have left the factory low on fluid. Not "a little low." Low enough to cause premature wear, harsh shifting, and in worst cases, transmission failure.
This isn't speculation. It's one of the most documented issues in the 3rd Gen Tacoma community, with over 1,222 owner reports and 248,600+ views in the dedicated TacomaWorld thread alone. And if you tow, haul, or push your Tacoma on trails here in Nevada's high desert, running low on trans fluid is a problem that compounds fast.
Here's everything you need to know — what happened, how to check it, and how to make sure your truck's transmission lives as long as the rest of it.
The Factory Underfill Issue: What Happened
The 3rd Generation Tacoma (2016–2023) uses the Aisin Warner A960E/F 6-speed automatic transmission — a well-proven gearbox used across multiple Toyota platforms. The transmission itself isn't the problem. The problem was in the filling process during manufacturing.
During production — particularly on 2016 model year and early production trucks — some units rolled off the line at Toyota's San Antonio (TMMTX) and Mexico (TMMBC) plants with insufficient ATF levels. This wasn't a recall-level defect in Toyota's eyes, but the Tacoma community noticed the pattern quickly. Owners were reporting shifting anomalies on brand-new trucks, and when fluid was checked, it was consistently low.
The critical detail: the A960 doesn't have a traditional dipstick. Checking the fluid level requires a specific procedure through an overflow plug on the transmission pan, with the fluid at operating temperature. Most owners — and even some dealers — never checked it until symptoms appeared.
Warning Signs: How to Tell If Your Fluid Is Low
Low transmission fluid doesn't always announce itself with a dashboard light. In many cases, the symptoms creep in gradually enough that you write them off as "normal Tacoma behavior." They're not. Here's what to watch for:
| Symptom | What It Feels Like | Severity |
|---|---|---|
| Harsh 1-2 Shift | A noticeable "clunk" or jolt when accelerating from a stop | Early Warning |
| Delayed Shifts | Engine revs climb before the transmission engages the next gear | Early Warning |
| Low-Speed Shudder | Vibration or hesitation between 15–30 mph during light acceleration | Moderate |
| Slipping Under Load | RPMs flare without corresponding acceleration, especially when towing or climbing | Serious |
| Whining / Buzzing | Unusual noise from the transmission area, especially at highway speeds | Serious |
| High Trans Temps | Temperature gauge reading consistently above normal, especially while towing | Critical |
If you're experiencing any of the "Serious" or "Critical" symptoms, stop towing immediately and get the fluid level checked. Running a transmission hot and low is the fastest way to destroy an otherwise reliable gearbox.
How to Check Your 3rd Gen Tacoma Transmission Fluid
Unlike older trucks with a simple dipstick, the A960E/F uses an overflow-style check procedure. The fluid level is set by a plug on the side of the transmission pan — when fluid is at the correct temperature and level, it should trickle out of the overflow hole. Here's the process:
| Step | Procedure |
|---|---|
| 1 | Warm the transmission to operating temperature. Drive for 15–20 minutes in mixed city/highway conditions. The fluid needs to be between 104–113°F (40–45°C) for an accurate reading. A scan tool with live ATF temp data is ideal. |
| 2 | Park on a level surface with the engine running. The transmission must be in Park with the engine idling. Level ground is critical — even a slight slope throws off the reading. |
| 3 | Locate the overflow plug on the transmission pan. It's on the driver's side of the pan. You'll need a 24mm socket (some owners report slight variation — check your specific year). |
| 4 | Remove the overflow plug carefully. If the fluid level is correct, ATF should trickle out slowly. If nothing comes out — your fluid is low. If it pours out quickly, the fluid may be overfilled or too hot (recheck temperature). |
| 5 | If low, add Toyota WS ATF through the fill plug (top of transmission, accessible from the engine bay) until fluid trickles from the overflow. Use ONLY Toyota Genuine WS ATF — the community strongly warns against substitutes. |
| 6 | Reinstall the overflow plug and torque to spec. Clean up any spilled fluid. Take it for a test drive and verify shift quality has improved. |
⚠️ Pro Tip from the Community
If you're not comfortable doing this yourself, any Toyota dealer can perform a transmission fluid level check. Tell them specifically that you want the A960 fluid level verified at operating temperature using the overflow method — not just a visual inspection. Some service techs aren't aware of the factory underfill pattern on 3rd Gens.

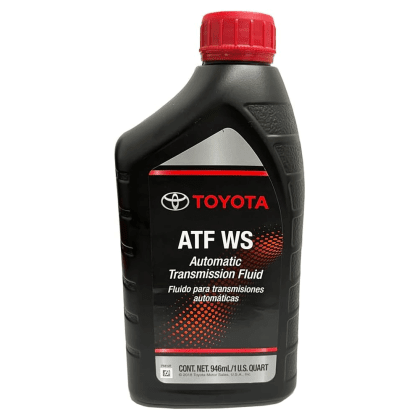

The Right Fluid: Toyota WS ATF and Why Substitutes Are a Bad Idea
The 3rd Gen Tacoma's A960E/F transmission is designed exclusively for Toyota WS (World Standard) ATF. This isn't marketing — the WS specification has specific friction modifier properties that the Aisin Warner valve body and clutch packs are calibrated for.
The TacomaWorld community has documented multiple cases where owners or shops used non-Toyota WS substitutes and experienced shifting problems that didn't exist before the service. The universal advice: spend the extra few dollars on genuine Toyota WS fluid. It's cheap insurance on a transmission that can cost $4,000–$6,000+ to replace.
| Fluid Spec | Application | Notes |
|---|---|---|
| Toyota WS ATF | 3rd Gen 6-speed automatic (A960E/F) | ✅ The only recommended fluid. Available at any Toyota dealer or online. |
| Redline MT-90 (GL-4) | 3rd Gen 6-speed manual transmission | ✅ Community-preferred swap for manual trucks. Dramatically improves cold-weather shifting. |
| Generic "WS Compatible" | Any — marketed as WS equivalent | ❌ Not recommended. Multiple documented cases of shifting issues after use. |
| GL-5 Gear Oil | Manual transmission | ❌ NEVER use GL-5 in Tacoma manuals. Damages brass synchronizers. |
Maintenance Intervals: When to Change Your Transmission Fluid
Toyota's official recommendation for the 3rd Gen automatic is a transmission fluid change at 60,000 miles under normal driving conditions, or 30,000 miles under severe conditions. But what counts as "severe"? More than you'd think:
- Towing — any towing at all puts your truck in the severe category
- Frequent off-roading — especially in sand, mud, or steep terrain where the trans works harder
- Dusty environments — if you're in Nevada, Arizona, or anywhere in the high desert, this is you
- Heavy stop-and-go driving — commuting in Reno or Las Vegas traffic counts
- Extreme temperatures — summers in the Silver State push trans temps higher than normal
If any of those sound like your driving life, the 30,000-mile interval is cheap insurance. A full transmission fluid change with Toyota WS ATF runs roughly $150–$250 at a dealer or independent shop. Compare that to a $5,000+ transmission replacement and it's the easiest math you'll do all week.
Towing with a 3rd Gen: Why Transmission Health Matters Even More
The 3rd Gen Tacoma's maximum tow rating sits at 6,800 lbs (Double Cab, 4WD, V6) — the highest of any 3rd Gen configuration. That's a solid number for a midsize truck. But towing at or near capacity puts massive thermal load on the transmission, and if your fluid is already low from the factory, you're compounding the problem.
The TacomaWorld community's towing consensus is clear:
- Check and possibly upgrade transmission fluid cooling before any sustained towing
- Add an aftermarket transmission temperature gauge — considered essential for any towing use
- Verify your fluid level before every towing trip — especially on 2016 and early production trucks
- Air up tires to max placard pressure when towing for stability
- Never tow in 4WD on pavement — a common mistake that stresses the drivetrain
If you haul a trailer to the trails, pull a boat out to Lahontan or Pyramid, or tow equipment across Northern Nevada for work — this is the maintenance item that separates the trucks that go 300,000 miles from the ones that need a new transmission at 120,000.
3rd Gen vs. 4th Gen: Did Toyota Fix the Problem?
The 4th Generation Tacoma (2024+) moved to an all-new 8-speed automatic transmission, leaving the A960 behind entirely. However, the 4th Gen has its own documented transmission concern — Toyota issued an official TSB for early-production 8-speed automatic failures. That thread has already accumulated 457+ replies and 53,770+ views on TacomaWorld.
The takeaway? Transmission maintenance isn't a generation-specific issue — it's a truck owner responsibility. Whether you're running a 3rd Gen with the proven A960 or a brand-new 4th Gen with the 8-speed, checking fluid levels and following maintenance intervals is the difference between a truck that runs forever and an expensive repair bill.
Other 3rd Gen Issues Worth Knowing About
While you're under the truck checking transmission fluid, it's worth knowing the other well-documented 3rd Gen concerns the community has flagged:
- 2GR-FKS Engine Failures — the 3.5L V6's D-4ST dual-injection system can contribute to carbon buildup on intake valves. Documented on TacomaWorld with 80,000+ views. Most owners are unaffected with proper maintenance, but monitor oil consumption.
- Driveline Vibration (TSB-0171-16) — a Toyota TSB addressing driveshaft vibration. 937 replies and 185,000+ views on TW.
- Catalytic Converter Theft — 3rd Gen Tacomas are among the most targeted vehicles for cat theft. Cat shield installation is strongly recommended.
- Super White (040) Paint Delamination — documented peeling issue. Toyota issued a corporate update. 1,358 replies, 154,000+ views.
- A/C Drain Frame Rust — condensate drain can pool on the frame creating a rust point. A simple redirect mod addresses it (1,002 replies, 510,000+ views).
Rep Your Tacoma. Built for the Grind.
You maintain your truck right — your gear should be built to the same standard. Battle Born Tacoma hats and tees are screen printed in-house on premium blanks with crack-resistant inks that survive mine shifts, trail days, and everything Nevada throws at you.
SHOP TACOMA COLLECTION →Frequently Asked Questions
Why is my 3rd Gen Tacoma transmission fluid low from the factory?
Toyota's manufacturing process for the 2016–2023 Tacoma's A960E/F 6-speed automatic resulted in some units leaving the factory with insufficient fluid levels. This was particularly common on 2016 and early production trucks. The issue has been extensively documented by the TacomaWorld community with over 1,200 owner reports and 248,600+ thread views.
What are the symptoms of low transmission fluid in a 3rd Gen Tacoma?
Common symptoms include harsh or delayed shifting, shuddering during low-speed acceleration, transmission slipping under load (especially when towing), unusual whining or buzzing from the transmission area, and higher-than-normal transmission temperatures. If you notice any of these, check your fluid level immediately.
What transmission fluid does the 3rd Gen Tacoma use?
Toyota WS (World Standard) ATF exclusively. The community strongly advises against non-Toyota substitutes, as the Aisin Warner transmission is calibrated specifically for WS fluid properties. Using incorrect fluid can cause shifting issues and premature wear.
How often should I change the transmission fluid on my 3rd Gen Tacoma?
60,000 miles under normal conditions, or 30,000 miles under severe conditions (towing, dusty environments, heavy stop-and-go, extreme temperatures). If you tow or drive in desert conditions — which includes most of Nevada — the 30,000-mile interval is strongly recommended.
Should I check the transmission fluid before towing?
Absolutely. Checking transmission fluid level before any towing is critical, especially on 3rd Gen Tacomas. Towing with low fluid dramatically increases transmission temperatures and accelerates wear. Many owners also recommend adding an aftermarket transmission temperature gauge for regular towing.
Does the 3rd Gen manual transmission have the same underfill issue?
No. The factory underfill is specific to the A960E/F 6-speed automatic. The 3rd Gen 6-speed manual does benefit from a fluid swap to Redline MT-90 (75W-90 GL-4), which dramatically improves cold-weather shifting. Use GL-4 spec only — GL-5 damages brass synchronizers in Tacoma manual transmissions.
