Screen Printing Ink Curing Guide
Share
Rob Krause
Owner, Battle Born Clothing & Print - Yerington, NV - Published March 11, 2026

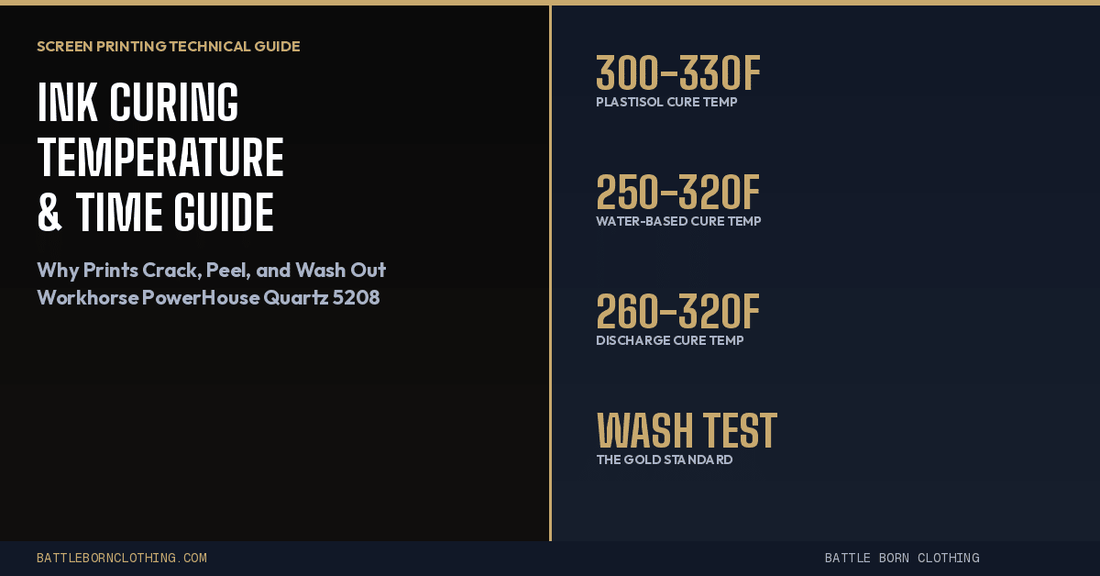

TL;DR - The Cure Temps You Need to Know
Plastisol: 300-330F through the entire ink film. Low-cure formulations: ~260F. Water-based: 250-320F + forced air to evaporate water. Discharge: 260-320F + forced air (activates at 230F, completes at 260F+). Under-cured prints crack and wash out. Over-cured prints scorch and lose stretch. The only reliable test is a wash test. Battle Born cures through a Workhorse PowerHouse Quartz 5208 forced-air conveyor dryer with donut probe verification. If your prints are cracking after three washes, the cure is the problem.
You could have the best design, the best ink, the best screens, and the best press technique in the world. None of it matters if the cure is wrong. Under-cured ink cracks, peels, and washes out. Over-cured ink scorches, yellows, and loses flexibility. The cure step is where prints either become permanent or become returns.
And here is the frustrating part: a print can look perfectly fine coming off the press and still be under-cured. Plastisol can feel dry to the touch before it has actually fused. Water-based can look set on the surface while the bottom layer is still wet. The failure does not show up until the customer washes the shirt. By then, you have a box of returns and a reputation problem.
This guide covers the science behind curing for every ink type we run at Battle Born, the equipment that makes it consistent, and the testing methods that verify it before a single shirt leaves our shop.
Cure Temperatures by Ink Type
Plastisol
300-330F
Plastisol is a thermoplastic ink. It does not dry - it fuses. The PVC resin and plasticizer molecules must cross-link at the specified temperature through the entire ink film thickness, not just the surface. The cure temperature varies by manufacturer and formulation. Low-cure plastisol (like FN-INK) fuses at approximately 260F. Always check the product data sheet for your specific ink.
Water-Based
250-320F
Water-based ink cures through a two-step process: first the water must evaporate, then the remaining pigment/binder must heat-set. This requires both temperature AND airflow. Without forced air, steam from the evaporating water gets trapped under the ink surface, preventing proper cure. A standard infrared dryer is not sufficient.
Discharge
260-320F
Discharge chemistry begins activating around 230F and completes dye removal around 260F. Full cure (ink bonding + water evaporation) happens at 260-320F with 90-120 seconds of dwell time in a forced-air dryer. Forced air is critical - it vents the steam and formaldehyde released during the discharge reaction. See our discharge ink guide.
"It is important that the entire ink film thickness reach the specified cure/fusion temperature. A wash test is the best method. Take a sample print, cut it in half, and wash it 3 to 5 times in a conventional washing machine."
- Lawson Screen & Digital Products - "How to Properly Cure Plastisol Inks"
Flash Curing vs Full Curing: Two Different Steps
These terms get confused constantly. They are two completely different stages in the printing process:
Flash Cure (Gelling)
When: Between color layers on press
Purpose: Make ink dry to the touch so the next color does not smear into it
Temperature: Plastisol gels at 220-250F (NOT full cure temp)
Duration: A few seconds under the flash unit
Result: Ink is set but NOT permanent. It has NOT fused.
Full Cure (Fusion)
When: After all colors are printed, in the conveyor dryer
Purpose: Permanently bond the ink to the garment
Temperature: 300-330F for plastisol (varies by ink), 250-320F for WB/discharge
Duration: Sufficient dwell time for the entire ink film to reach temp (30-120 sec)
Result: Ink is permanently fused. Print survives washing indefinitely.
The #1 Curing Mistake
Over-flashing the underbase. If you flash too long, the underbase fully cures on press. Then the top colors cannot bond to it properly because the cured surface is too smooth and sealed. The result: the top colors peel off the underbase after washing, even though they feel fine coming off the press. Flash just enough to gel - dry to the touch, slightly tacky. Then print the next color. See our underbase guide for flash timing details.
Our Dryer: Workhorse PowerHouse Quartz 5208
The dryer is the most important piece of equipment in the curing chain. An M&R GT-8 can lay down a perfect print, but if the dryer cannot bring the ink to fusion temperature consistently across the entire belt width for the correct dwell time, the print will fail in the wash.
Quartz heating elements: Quartz infrared delivers faster, more even heat transfer than conventional ceramic elements. The heat reaches the ink layer more efficiently, reducing the risk of surface-cured / bottom-uncured prints.
Forced-air recirculation system: This is what separates the 5208 from basic infrared dryers. The recirculation system draws air through a center-mounted blower motor, pushes it through internal chambers, and forces it down across the garment through the quartz element banks. This converts radiant heat into convection heat, which envelops the garment evenly and drives moisture out of water-based and discharge inks. Without this system, water-based and discharge curing is unreliable.
Belt speed control: The conveyor belt speed determines dwell time - how long each garment is exposed to heat. Faster belt = less dwell time. Slower belt = more dwell time. We calibrate belt speed for each ink type and deposit thickness. Thicker ink deposits (like white underbases) need slower belt speeds than thin single-color prints.
Temperature monitoring: We verify cure temperature with a donut probe thermometer placed in the wet ink film. A donut probe measures the actual ink temperature as it passes through the dryer - not just the surface temperature. IR guns only read surface temp, which can be 60-80F higher than the actual ink core temp. If your shop only uses an IR gun, you are guessing.
Under-Cured vs Over-Cured: How to Tell
Under-Cured Symptoms
Ink cracks when you stretch the shirt. Print washes out or fades significantly after 1-3 washes. Ink peels off in sheets. Print feels slightly tacky or sticky, especially in humid conditions. Colors appear dull even though the print looked fine coming off the press. Plastisol ink still smells slightly after curing (plasticizer has not fully cross-linked).
Over-Cured Symptoms
Garment scorching (yellowing or browning, especially on white cotton). Ink loses flexibility and becomes brittle. Colors shift - whites turn yellow, lights darken. Fabric feels stiff and crunchy. On polyester and blends, dye migration occurs (fabric dye bleeds into the ink, turning whites pink or blue). Print cracks from brittleness rather than adhesion failure.
Testing: The Only Way to Know for Sure
The Stretch Test (Quick On-Press Check)
After curing, stretch the printed area firmly. Properly cured plastisol will stretch with the fabric and snap back without cracking. Under-cured ink will crack immediately. Over-cured ink will crack in a brittle, shattery pattern (film split). This test is quick but not 100% reliable - ink can pass the stretch test and still wash out. Use it as a first-pass indicator, not a final confirmation.
The Wash Test (Gold Standard)
Print a sample. Cut it in half. Wash one half 3-5 times: hot wash, cold rinse, with jeans or towels for abrasion. Tumble dry on high for 30 minutes per cycle. Compare the washed half to the unwashed half side by side. If you see cracking, peeling, flaking, or significant color loss, the ink is under-cured. Adjust dryer settings and retest. We run a wash test before every new ink, fabric, or dryer setting goes into production.
Temperature Measurement Tools
Donut probe (best): A thermocouple placed directly in the wet ink film. Measures actual ink core temperature as it passes through the dryer. Real-time, accurate, and tells you exactly what the ink is experiencing.
IR gun (surface only): Reads the surface temperature of the ink as the garment exits the dryer. Quick and easy but misleading. Surface temp can read 60-80F higher than the actual ink core temp. If your IR gun says 330F, the ink core might only be at 260F. Not reliable for confirming cure without compensation.
Heat tape strips: Adhesive temperature indicators placed on the garment before it enters the dryer. They change color at specific temperatures. Useful for confirming that the dryer reaches the target zone but do not measure dwell time or ink film temperature specifically.
Variables That Affect Cure (Beyond Temperature)
Temperature is the headline number, but a dozen other factors influence whether a print actually cures properly:
Ink Deposit Thickness
Thicker deposits need more time at temperature. A single-color print through 230 mesh cures much faster than a white print-flash-print through 110 mesh. White ink is always the thickest deposit and always the hardest to fully cure.
Garment Type
Heavyweight fleece and hoodies absorb more heat than lightweight cotton tees. You may need to slow the belt or increase dryer temp for thick garments. Polyester and blends require lower temps to prevent dye migration but still need enough heat to cure the ink.
Belt Speed / Dwell Time
The conveyor belt speed determines how long the garment stays in the heat chamber. Faster belt = less time in the dryer. Slower belt = more time. Increasing belt speed without compensating with higher heat leads to under-cured prints. This is the most common mistake when production pressure pushes shops to run faster.
Room Temperature
A cold shop means cold garments, cold platens, and cold ink. Everything takes longer to reach cure temp. Keep the shop at 70-80F for consistent results. In winter, pre-warm garments by running them through the dryer empty before printing.
Belt Loading
Garments must pass through the dryer flat and evenly spaced. Overlapping, bunching, or stacking garments blocks heat and airflow, creating cold spots where the ink does not fully cure. Every garment needs its own space on the belt.
Voltage Fluctuations
Electric dryers are affected by incoming voltage. If your shop shares power with heavy equipment (like in a mining corridor warehouse), voltage drops can reduce dryer heat output. A dedicated circuit for the dryer eliminates this variable. Gas dryers are less affected but have their own calibration needs.
What This Means for Your Order
Most customers never think about curing. They should not have to. That is the printer's job. But understanding curing is how you evaluate whether a shop is cutting corners or doing it right.
If you have ever received shirts where the print cracked after a few washes, faded dramatically, or peeled off in chunks, the cure was wrong. Not the ink. Not the design. Not the shirt. The cure. For more on spotting these problems, see our 5 signs your last print shop cut corners and our crack-resistant printing guide.
Prints That Survive the Wash. Every Time.
Battle Born cures every job through a Workhorse PowerHouse Quartz 5208 forced-air conveyor dryer with donut probe temperature verification. Plastisol, water-based, discharge - each gets the cure profile it needs. No shortcuts. No guessing. No returns.
Frequently Asked Questions
What temperature does plastisol ink cure at?
Standard plastisol cures at 300-330F through the entire ink film. Low-cure formulations cure at approximately 260F. The entire film thickness must reach this temperature, not just the surface. Thicker deposits need more time at temperature.
What temperature does water-based ink cure at?
250-320F depending on formulation, plus forced airflow to evaporate the water content. Without forced air, steam traps under the surface and prevents proper cure. A standard infrared dryer without air circulation is not sufficient for water-based inks.
Why do my screen prints crack after washing?
Almost always under-curing. The surface may feel dry but the bottom layer has not reached full fusion temperature. Other causes: excessive ink deposit, wrong ink for the fabric, or improper pre-treatment. A wash test with 3-5 cycles before production confirms proper cure.
What is the difference between flash curing and full curing?
Flash curing is a brief heat application between color layers that gels the ink (dry to touch) so the next color does not smear. Full curing is the final step in the conveyor dryer where the entire ink film reaches fusion temperature and becomes permanent. Flash = mid-process pause. Full cure = final step.
Do I need a conveyor dryer for screen printing?
For production quality, yes. Flash dryers and heat presses work for small runs but provide inconsistent heat distribution. For water-based and discharge inks, a forced-air conveyor dryer is mandatory. The air circulation evaporates water from the ink film, which infrared alone cannot do.
How do I test if my screen prints are properly cured?
Wash test. Print a sample, cut in half, wash one half 3-5 times (hot wash, cold rinse, with jeans for abrasion), tumble dry high. Compare to the unwashed half. Cracking, peeling, or fading = under-cured. A stretch test is a quick indicator but not as reliable as a full wash test.
