Embroidery Needle Size, Thread Weight & Stitch Density: Our Shop Cheat Sheet
Quick answer: For standard 40 weight embroidery thread, run a 75/11 needle and set satin density around 0.40 mm. Go smaller (60/8–65/9) for fine 60 weight thread and bigger (80/12–100/16) for heavy 30 and 12 weight thread. Use a ballpoint on knits like tees, polos and hoodies, and a sharp on tight wovens like caps, denim, canvas and Carhartt duck. Change needles every 8 or so hours of run time.

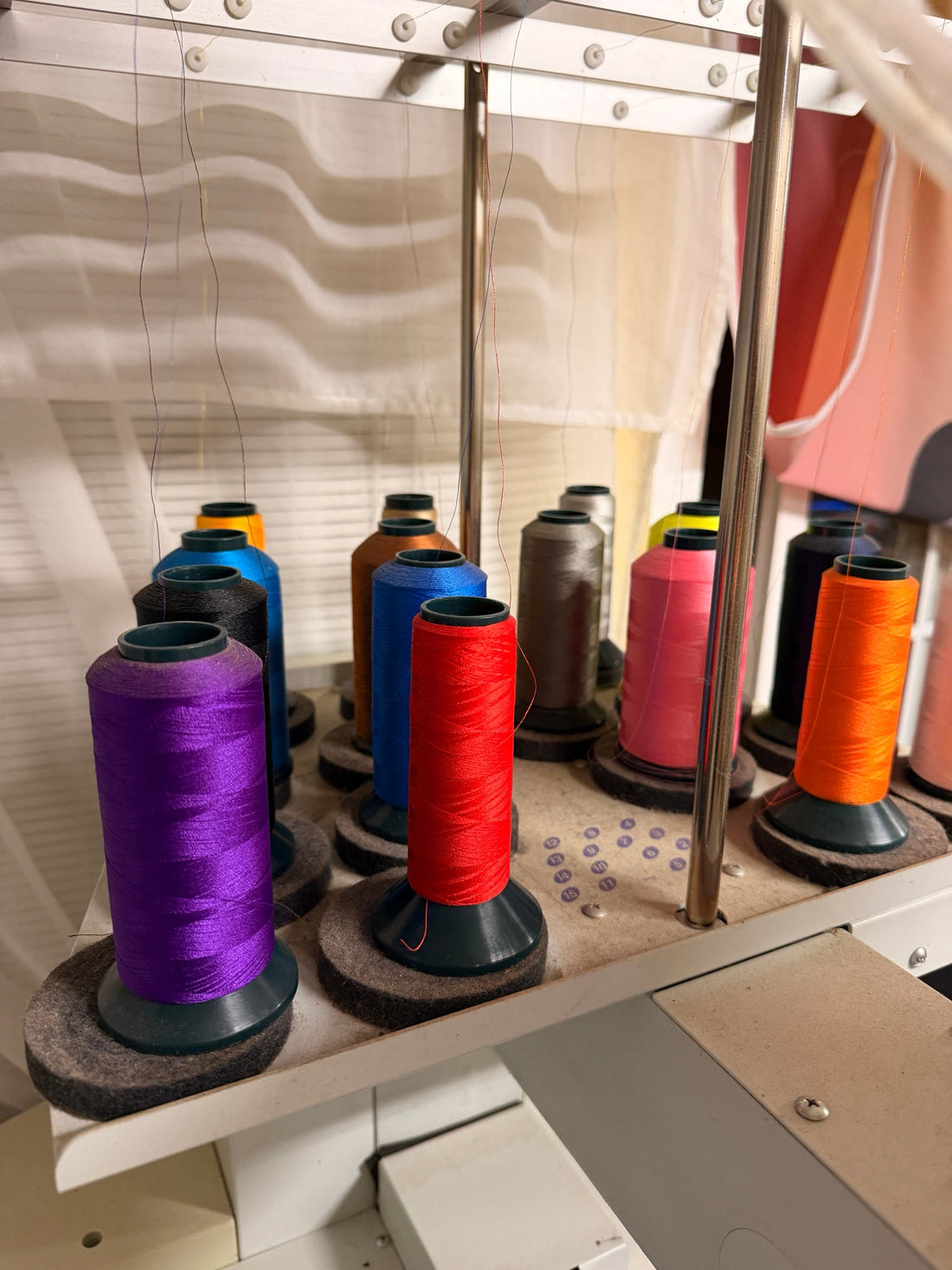

That's the short version of the cheat sheet taped next to our Happy 15-needle machine here in Yerington. Below is the full version: how a needle works, how to match it to your thread and fabric, how dense to digitize, and the tension check we run before every job. If you're digitizing your own logos or running a single-head machine at home or in a small shop, this will save you a lot of thread breaks. (No digitizing software yet? Our browser-based EasyDigitizer runs on Windows, Mac, iPad and Chromebook with nothing to install.)
Why the needle and the thread have to match
Almost every embroidery problem we see from customer-supplied files or new machine owners traces back to one of three things: the wrong needle for the thread, the wrong point for the fabric, or a design digitized too dense for the thread weight. The needle has to punch a hole big enough for the thread to pass through cleanly, but small enough to stay hidden under the stitches. Thicker thread needs a bigger needle and more space between stitches. Thinner thread needs a smaller needle and tighter spacing.
Anatomy of an embroidery needle (the 30-second version)
- Shank: the top that clamps into the machine. Commercial machines (Happy, Tajima, BAI and similar) use a round shank. Most home and some single-needle machines use a flat-sided shank.
- Shoulder and blade: the taper and the shaft. The taper lets the needle slide through fabric at high speed.
- Groove: a channel down the front that guides the thread into the eye.
- Scarf: a scoop on the back, just above the eye, where the hook grabs the top thread and locks it with the bobbin thread. A needle installed off-angle misses the scarf, and that's when you get skipped stitches.
- Eye: Most embroiderers run large-eye DBxK5 needles because they thread easily and are gentle on embroidery thread. DBx1 standard-eye needles have thicker walls around the eye, so some shops switch to them on tough fabrics where needles keep breaking.
- Point: ballpoint or sharp. More on that below.
Our Happy HCD2-1501 runs round-shank DBxK5 needles. If you're stocking up, these Groz-Beckert DBxK5 75/11 needles are the everyday size for 40 weight thread. The 70/10 and 80/12 sizes cover finer and heavier work.
Step 1: Pick the needle size from your thread weight
Needle sizes run from 60/8 (finest) to 100/16 (heaviest). Thread weight works backwards from what you'd expect: the higher the weight number, the thinner the thread. So 60 weight is fine, 40 weight is standard, and 12 weight is thick.
| Thread | Typical use | Needle size |
|---|---|---|
| 75 wt (extra fine) | Tiny lettering, microtext | 60/8 |
| 60 wt (fine) | Small text under 5 mm, fine detail | 60/8 – 65/9 |
| 40 wt (standard) | Most logos on hats, polos, jackets | 75/11 (65/9 for delicate work) |
| 40 wt metallic | Accents, metallic lettering | 75/11 – 80/12 (go up if it shreds) |
| 40 wt matte / specialty | Matte finish, glow, flame-resistant | 75/11 – 80/12 |
| 30 wt (heavy) | Bold fills, faster coverage | 75/11 – 90/14 |
| 12 wt (extra heavy, wool blends) | Hand-stitched look, vintage patches | 100/16 |
Shop rule: when a range is listed, use the smaller needle on delicate fabric and small designs, and the larger one for everything else. A slightly bigger needle runs smoother and breaks less thread.
We run polyester 40 weight on almost everything because it holds up to bleach, industrial laundry and Nevada sun. Not sure whether polyester or rayon is right for your job? Read our breakdown of rayon vs polyester vs cotton thread. If you're building a thread wall, this 40-color polyester thread set covers most logo colors.
Step 2: Pick the needle point from your fabric
| Point | Package code | Use it on |
|---|---|---|
| Ballpoint | SES (SUK on 100/16) | Knits and stretchy fabric: t-shirts, polos, sweatshirts, hoodies, sweaters, plus lightweight wovens like dress shirts |
| Sharp | RG | Tight wovens: caps (twill), denim, canvas, Carhartt duck, bags |
A ballpoint pushes knit fibers aside instead of cutting them. A sharp pierces the weave cleanly, so satin edges stay crisp. Two mistakes we see all the time:
- Sharp needle on a knit: it slices the knit loops, and you get holes and runs around the design, sometimes after the first wash.
- Ballpoint on a cap or canvas: the rounded tip deflects off the tight weave, bends and snaps. Hats basically always get a sharp.
Step 3: Set stitch density for the thread weight
Density is the spacing between satin or fill stitches. Thinner thread needs tighter spacing to cover. Thicker thread needs more room, or it piles up, puckers and breaks needles. These are good starting points for satin columns:
| Thread weight | Satin spacing (mm) | In "points" (0.1 mm) |
|---|---|---|
| 75 wt | 0.20 | 2.0 |
| 60 wt | 0.35 | 3.5 |
| 40 wt | 0.35 – 0.40 | 3.5 – 4.0 |
| 40 wt matte | 0.30 – 0.40 | 3.0 – 4.0 |
| 40 wt glow / specialty | 0.40 – 0.50 | 4.0 – 5.0 |
| 30 wt | 0.50 – 0.60 | 5.0 – 6.0 |
| 20 wt metallic | 0.80 | 8.0 |
| 12 wt / wool blends | 0.80 – 0.90 | 8.0 – 9.0 |
These are starting points, not laws. Fabric changes everything: a fleece hoodie needs more underlay and slightly looser density than a polo, and caps need pull compensation that a flat jacket back doesn't. That's why we hand-digitize every logo for the actual garment it's going on instead of running one file on everything.
Digitizing your own files? Every number in this table can be set by hand in EasyDigitizer, our browser-based digitizing app. Its hand-digitizing tools are built for exactly this kind of work:
- Two-rail satin columns and a stitch angle tool, so you control column width and direction instead of letting software guess.
- Full stitch control: density, stitch length, pull and push compensation, minimum stitch, auto-split for wide satins, lock stitches and trims.
- Custom underlay layers (edge, zigzag, tatami, parallel and lattice) you can stack, each with its own settings.
- Manual stitch (one needle drop per click), node and Bézier editing, and show stitches while editing, so you see the real needle drops as you work.
Designing and previewing are free. You only pay when you export to DST, PES, EXP, JEF, VP3 or TAP (see pricing).
Density only works if the fabric doesn't move. On flat goods we back knits with cut-away stabilizer, and we're moving our flat hooping over to Maggie magnetic frames, like the 6.9" left-chest hoop and the 12.9" × 10" jacket-back hoop. Even clamping pressure means less hoop burn and less shifting mid-run (here's why we're switching). Structured caps still run on the cap driver with a firm tear-away backing. For more on hats, see our hat stabilizer guide.
Step 4: Check your tension (the one-third rule)
Flip a finished satin column over and look at the back. On a properly balanced stitch, you should see about one third bobbin thread down the center, with top thread on each side:
- Little or no bobbin showing: top tension is too loose or bobbin tension too tight. Expect loops on top.
- Bobbin showing on the front: top tension is too tight or bobbin tension too loose.
Check it at the start of every shift and any time you change thread brands or bobbin types. Consistent pre-wound bobbins make this a lot easier. We like plastic-sided L-style bobbins such as these 70D pre-wound bobbins.
How much thread does a design use?
For quoting and ordering, a reliable rule of thumb at standard stitch lengths is:
- Top thread: about 5 meters per 1,000 stitches
- Bobbin thread: about 3 meters per 1,000 stitches
So a typical 8,000-stitch left-chest logo uses roughly 40 m of top thread and 24 m of bobbin per piece. On a 144-piece order, that's nearly 6,000 m of top thread across all colors. Plan your cones before you start.
Change your needles before they break
An embroidery needle lasts roughly 8 hours of actual run time. At high speed the thread slowly wears the eye thin, until one day it snaps mid-logo. Long before that, a worn needle causes looping, skipped stitches and thread breaks that look like tension problems. We swap needles on a schedule instead of waiting for a break, and we log which size and point is on each needle position so nobody puts a ballpoint on a cap run by accident.
Quick troubleshooting cheat sheet
- Thread shredding or fraying: needle too small for the thread, worn needle, or a burr in the eye. Go up a size or swap the needle.
- Skipped stitches: needle installed slightly turned, so the hook misses the scarf. Reinstall it straight with the scarf facing the back.
- Holes or runs on a shirt: sharp point on a knit. Switch to ballpoint and use cut-away backing.
- Bent or broken needles on caps: ballpoint on twill, or density too high. Use a sharp and open up the density.
- Puckering: density too tight for the thread weight, weak stabilizer, or fabric loose in the hoop.
Still chasing a problem? Walk through the free EasyDigitizer machine troubleshooter. It walks you through common machine problems step by step.
Or let us handle it
If you'd rather skip the needle math, that's what we're here for. Battle Born Clothing & Print hand-digitizes and stitches logos on hats, polos, Carhartt jackets and workwear in Yerington, NV, and ships nationwide with no minimums on embroidery. See our custom embroidery services, or email your logo and quantity to sales@battlebornclothing.com or call (775) 230-0211 for a same-day quote.
Some equipment and supply links in this post are affiliate links; we may earn a small commission at no extra cost to you. All density and needle numbers are starting guidelines. Results vary by fabric, thread brand and machine, so always run a test sew-out.
